Vane Angle Tool
Vane Angle Tool

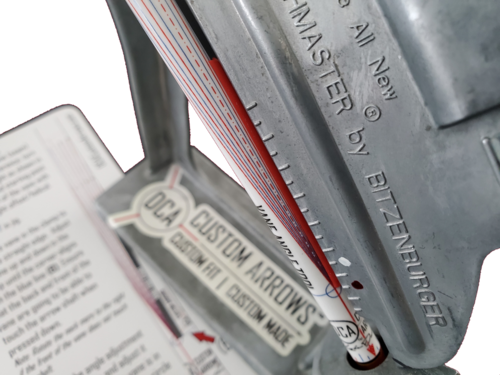

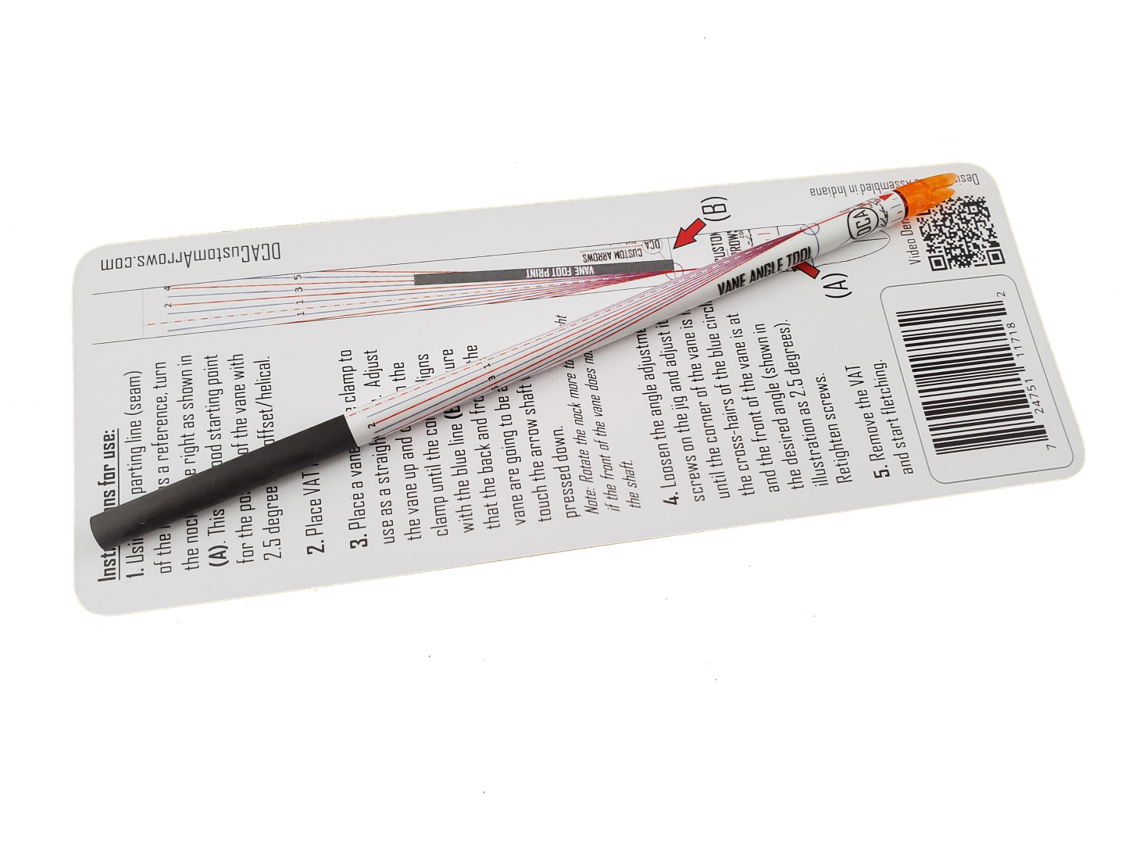

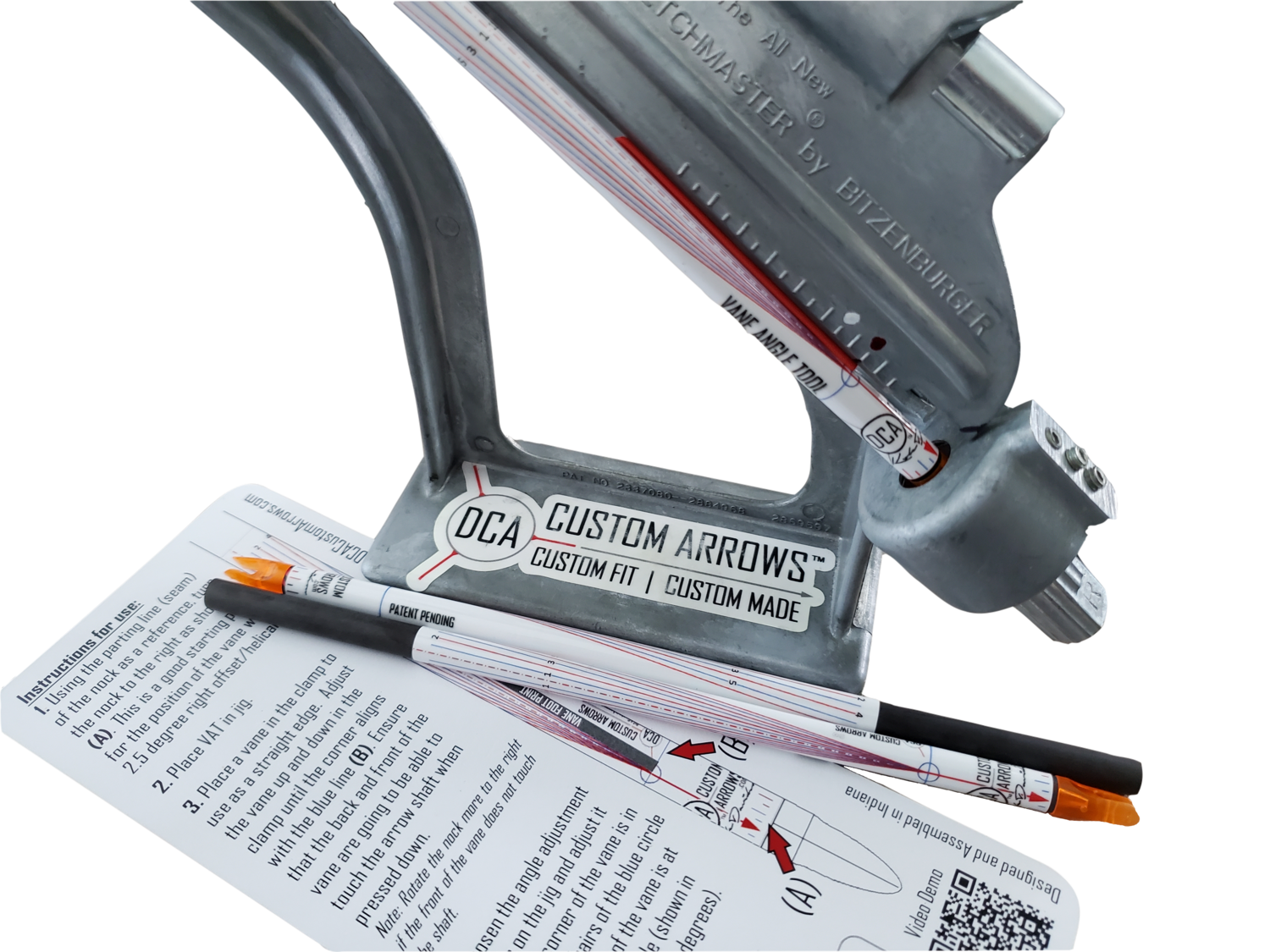

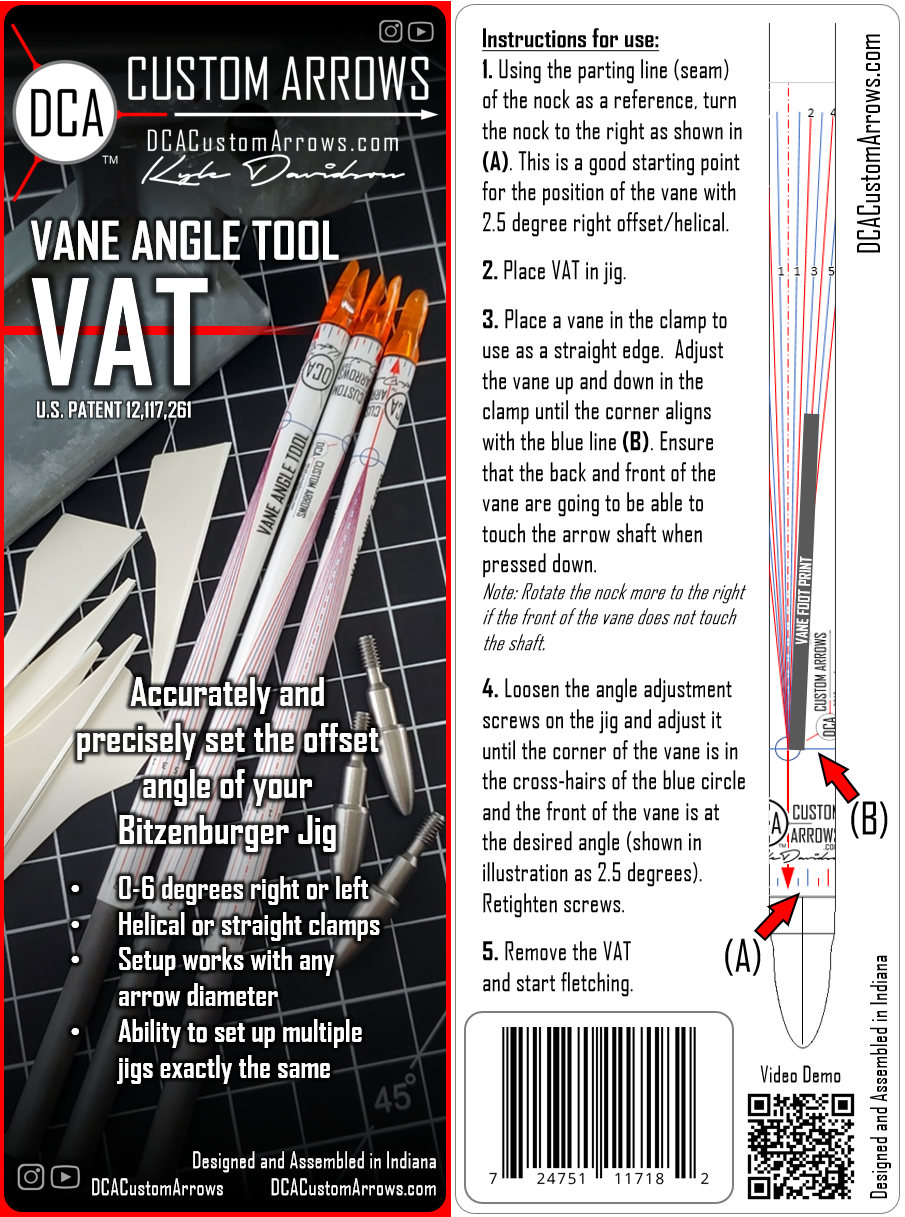

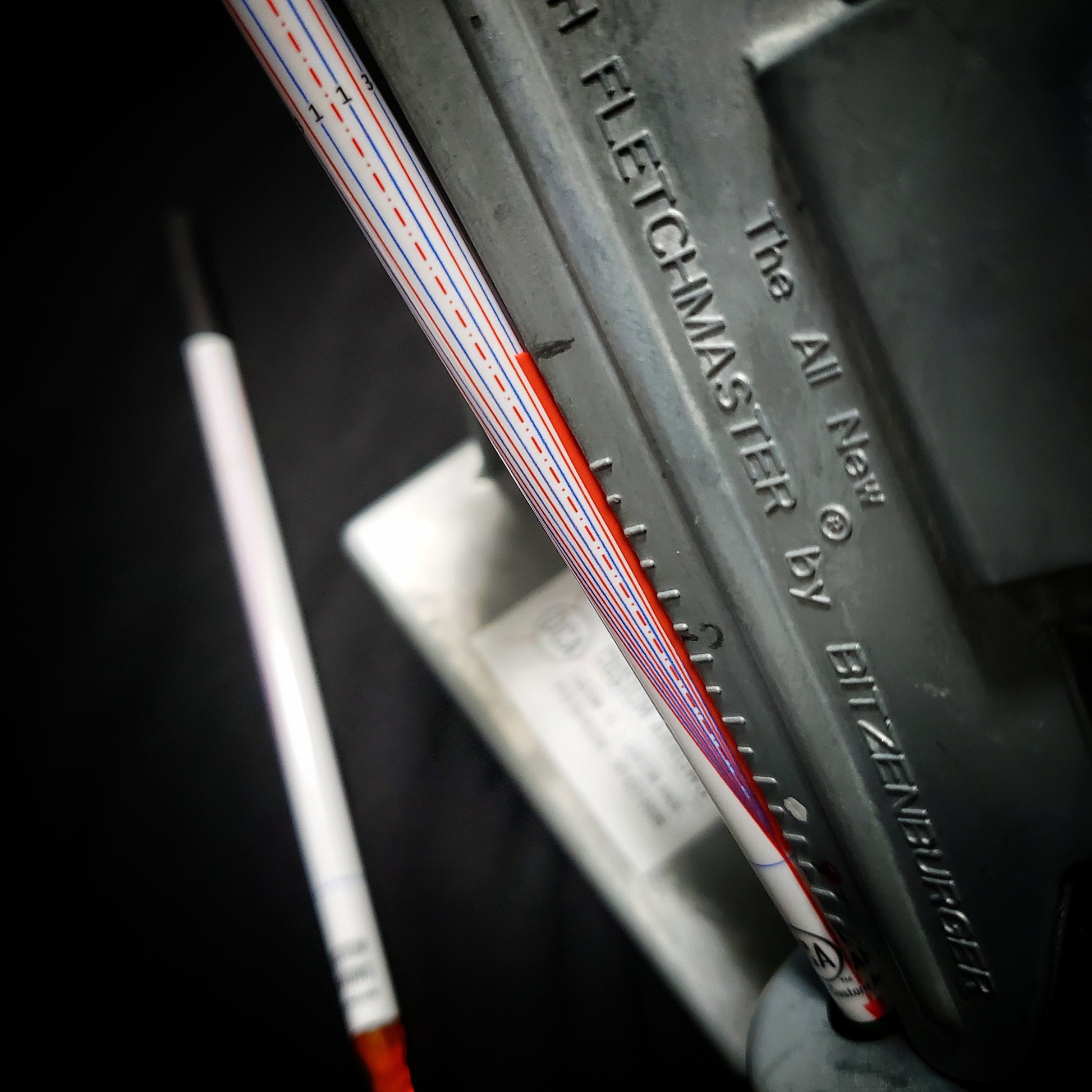

Use this patented tool to precisely set up your Bitzenburger fletching jig to the desired helical (or offset) angle. The wrap shows angles from 0 - 6 degrees left or right and is attached to a 7” section of 0.204 ID arrow and includes a nock. Just place an arrow in the clamp, turn the nock so that the bottom corner of the vane is in the crosshair as shown and adjust the dials on the jig. This works with the straight and helical clamp. The helical clamp actually puts the vane on straight, it just follows the curvature of the arrow better. Simple, precise, and highly effective.
Couldn't load pickup availability
Share

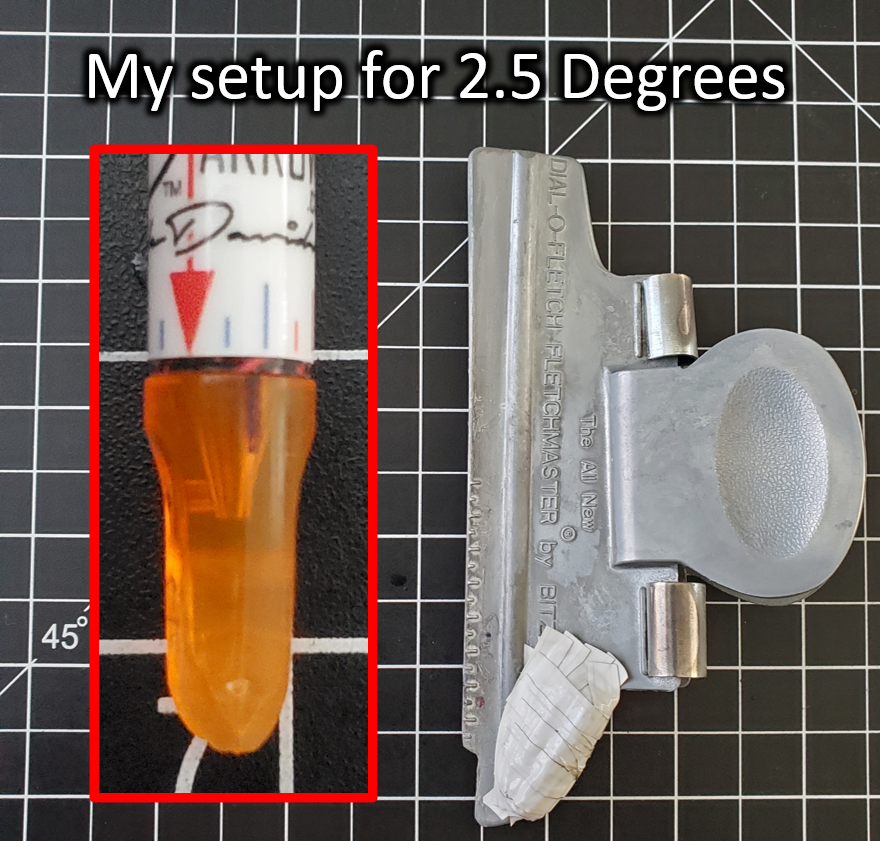

This thing is awesome, takes the guess work out of setting up my Bitzenberger jig for the perfect 2.5 degree helical
The vane angle tool is a nice addition to my fletching set up. Takes the guess work out of what you are trying to accomplish with your vane angle.
These Vans are incredible!! I will be using these veins on all my arrows from now on.My arrows are quiet in flight and my groups were impressive.
Now I can set the angle of my fletches to the right angle. Easy tool to use
